YF—120A卷管机 - 副本.jpg

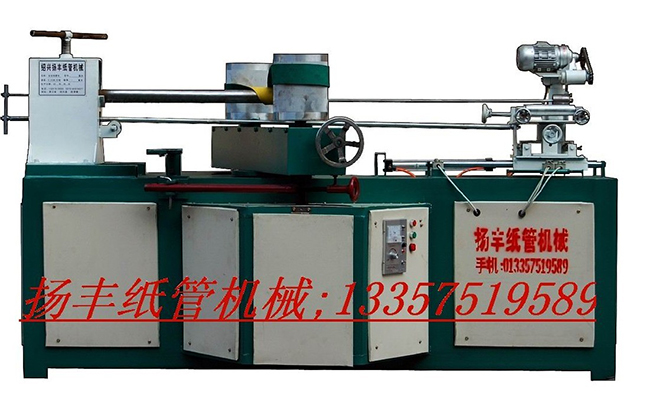

Yang feng YF - 120 a roll mill
The host power; 5.5 kw
Voltage; 380 v three phase four wire
Volume tube diameter; 25-100 - mm
Volume tube thickness; 1-8 mm
Volume tube speed; 5-20 m/min
Speed control; Computer frequency control of motor speed
The paper layer; 3-13 layers
Volume tube; Compound spiral paper tube
Drive form; Double speed reducer drive
The gluing way; Disc single sizing
Cutting way; Circular knife track cutting
Cutting accuracy; , > < 1.5 mm
The operator; 1 to 2 people
The dimensions; Long; 250 cm wide; 160 cm, 150 cm tall
The price; 46800 yuan
Contains; On the plastic frame, on paper. Paper tube bracket, to take over the frame and so on. Can be customized according to customer's requirements. This machine is used for production
Paper tube specifications; Chemical fiber, food packaging, plastic film, textiles, printing and dyeing, industrial paper tube, etc. The machine USES cardan drive, 2 wheel drive, two reducer, speed smooth, low noise, fast speed, strong volume tube and so on
