250型高速卷管机 - 副本.png

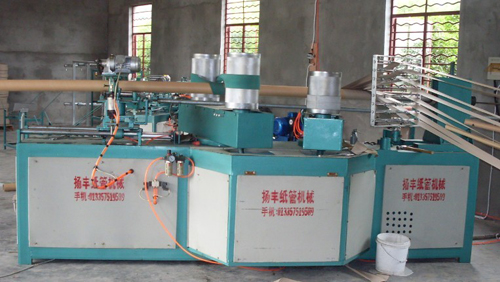

Yang feng YF - 250 a roll mill
The host power; 15 kw
Voltage; 380 v three phase four wire
Volume tube diameter; 50-250 mm
The paper layer; 22 layers
Volume tube thickness; 3-15 mm
Volume tube speed; 5-18 meters, per minute
Volume tube; Compound spiral paper tube
The gluing way; Automatically. Invasive double-sided glue
Cutting way; Nc servo tracking cutting
Cutting accuracy; , 1-3 mm > <
The operator; 1-3
Total price; 128000 yuan
Contains; Automatic gluing, electric on paper. Paper tube bracket, to take over the frame and so on. Can be customized according to customer's requirements.
This machine is suitable for production of paper tube specifications; Chemical fiber, food, papermaking, mulch paper tube, etc. This machine adopts universal joint drive, four-wheel drive, four reducer gear, speed smooth, low noise, fast, strong volume tube and so on merits.
